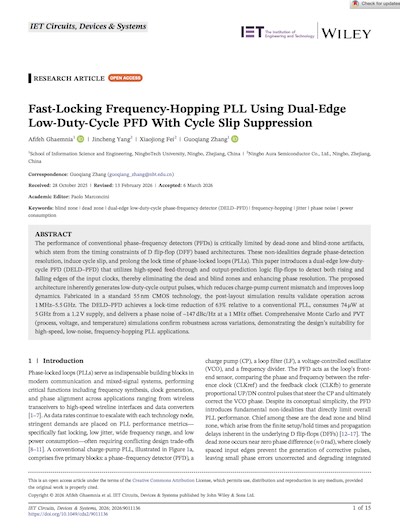

Today's article comes from the journal of IET Circuits, Devices & Systems. The authors are Ghaemnia et al., from Ningbo Institute of Technology, in China. In this paper, they showcase a revamped phase-frequency detector for phase-locked loop systems.
DOI: 10.1049/cds2/9011136
If you stick a shovel in the ground, almost anywhere in the world, there's a good chance you'll pull up some quartz. Small clear or white crystals, usually about the size of a grain of sand. It's been used for hundreds of years in building materials, and construction, and even further back than that as decoration, tools and ceremonial objects. But in the last 75 years or so, it's gotten a whole new use-case inside of computers, smart phones, tablets, IoT devices, and more. Why? Because these devices need to keep time very accurately, and quartz is exceptionally good at that.
You see, quartz is what we call piezoelectric. When you apply an electrical voltage to it, the crystal physically deforms and begins vibrating. And when it vibrates, it generates electrical signals back in return. These vibrations occur extremely regularly. If you shape a piece of quartz to the right size and geometry, and send the right amount of electricity through it, you'll get a crystal that is vibrating at exactly the right number of times per second. You can, quite literally, set your watch to it.
If you're a computer, this phenomenon is extremely useful to you. Why? Because there's nothing else inherent in your design that allows you to track the passage of time. In order for a chip to know that process A took X milliseconds, and process B took Y milliseconds, the computer needs to consult a timekeeper of some sort. In this case, the crystal. These tiny bits of quartz buried deep inside our devices act as a regular heartbeat, and a way for the system to know, in precise detail, exactly how much time is passing moment to moment.
But there's an issue: while quartz crystals are extremely accurate and stable, they're also relatively slow and they operate at fixed frequencies. A modern system might need many different clocks simultaneously, sometimes running thousands of times faster than the original crystal itself. For this reason, quartz is used as what we call a "reference" clock. The clocks that the system actually uses day-to-day are artificial oscillations generated from that reference. But these downstream clocks are prone to drift. They're not crystals after all, just electrical oscillators. So almost all of them use something called a PLL to keep their generated timings in sync with the reference. A PLL (a phase-locked loop) works by continuously comparing the generated clock against the crystal reference, measuring whether it's running too fast or too slow, and then dynamically correcting the oscillator until both signals stay synchronized in frequency and phase.
The "front end" of a PLL is what we call a PFD: a phase-frequency detector. It's the piece that compares the reference clock against the generated clock and determines which one is leading or lagging. It outputs correction signals that tell the PLL whether the oscillator needs to speed up or slow down. The problem is that conventional PFDs suffer from two types of timing artifacts: dead zones and blind zones. More on those later. For now, just know that they cause issues like jitter, cycle slip, and slow bootup for PLL systems.
So why did I just tell you all that? Well, in today's paper the authors think they've come up with a solution for those specific issues. On today's episode we'll walk through what those problems are, why they're a big problem for specific use-cases, how previous solutions tried (and failed) to address them, and what the authors here are doing differently. Let's dive in.
The first issue is called the dead zone. Under the hood a PFD is actually doing something fairly simple: it's looking at two incoming clock signals and deciding which one arrived first. It can only make that decision if the two arrivals are separated by enough time for the circuit to notice the difference. If the reference clock and the generated clock arrive almost on top of each other, the detector may not produce a meaningful correction signal at all. That's the dead zone. That matters because PLLs are supposed to make many tiny corrections over time, not big jumps. They try to avoid fixing the oscillator with one giant adjustment. Instead they just nudge it faster or slower, little by little, until the generated clock lines up with the reference. But in the dead zone, those tiny corrections disappear, and small timing errors are allowed to remain uncorrected. Over time that shows up as jitter: the generated clock's edges do not arrive at perfectly regular moments. It's still broadly correct, but its exact timing becomes slightly unstable.
The second issue is called the blind zone. This happens at the opposite end of the problem. Instead of the clocks being almost perfectly aligned, they are very far apart, close to a full cycle out of alignment. At that point, the detector can become confused about which clock is really leading. It may tell the PLL to correct in the wrong direction (only making the matter worse), or just fail to give a clean correction at all.
And this is where cycle slip comes in. A cycle slip happens when the PLL loses track of the correct clock cycle and effectively falls behind or jumps ahead by a whole cycle before recovering. That is much worse than a tiny timing wobble, it's the larger failure that can happen when the PLL is trying to lock and the detector gives it bad information.
These problems are especially damaging in what we call "frequency-hopping" systems. In these setups, a radio doesn't stay on one frequency continuously. It rapidly jumps between different ones, often thousands of times per second. This technique is used in protocols like Bluetooth, but also military radios, and spread-spectrum networks because it helps reduce interference, avoid congestion, and make transmissions more resistant to jamming or interception. But why does a frequency-hopping system care more about jitters and cycle slips than others? Well, in a normal fixed-frequency system, the PLL may only need to "lock" (hard-align to the reference clock) once and then spend the rest of its time just making small adjustments. But in a hopping system, the target frequency keeps changing. And every time the system jumps to a new channel, the PLL has to retune the oscillator and lock again. So the system repeatedly forces the PLL into exactly the situation where dead zones, blind zones, and cycle slips matter most: the messy period before the timing loop has settled down.
So what we need, in these situations, is a way to reduce lock-time. A way to boot up the system (or hop to a new channel) and get the generated clock to synchronize to the reference clock as quickly as possible. If the PLL locks slowly, the radio has to wait. If the PLL slips cycles during the transition, it waits even longer. And all of this is determined, again, by the PFD. A bad PFD does not merely make the clock slightly noisier. It directly affects a frequency-hopping system's ability to perform its primary function: hop frequencies.
So what can we do? Well, to be fair, a lot of people have already tried to solve this, in a lot of different ways. One approach was to force the PFD to produce correction pulses that are wide enough to be detected. That helps with the dead zone, because even very small phase differences can still produce a usable signal. But it creates a tradeoff. If you deliberately stretch those pulses, you also add delay inside the detector. And once you add delay, the circuit may no longer operate as well at the higher frequencies. Other approaches tried to detect more than one clock edge. A normal PFD usually looks at one edge of the clock, such as the rising edge. But a clock actually has two useful transitions: it rises and it falls. A dual-edge detector tries to use both. In principle, that gives the PLL more chances to measure the timing error. The problem is that earlier dual-edge designs brought their own set of complications: some needed the clock waveform to be very evenly balanced, some used too much power, others helped with the dead zone but failed to address the blind zone and cycle slip.
These authors' believe they've found a better way. Their solution is to split the job in two. Instead of a single task handled by one generic circuit, they use:
But the point is not just to add more circuitry. It's to let each half of the detector specialize in a different part of the problem.
Together, those two paths give the PLL more complete information across the full range of phase errors.
But does it work? To find out, the authors validated the design through both schematic-level and post-layout simulations, then compared the results. Why compare them? Because post-layout simulation accounts for the parasitic capacitances and resistances introduced by the physical wiring of the chip. These are effects that don't exist in a schematic. Close agreement between the two means the design holds up to those real-world effects rather than performing well only on a theoretical model. In this case, they found that the alignment was there, and it was strong.
But more generally, the results were compelling across each of the axes they measured. Power consumption was dramatically lower, lock time dropped by nearly two thirds, and cycle slips were either suppressed or absent. On top of all that, phase-noise landed well below what prior designs in this class achieved, and the reference spurs in the output spectrum were strongly attenuated. This is consistent with the narrower pulses and reduced charge-pump mismatch that the architecture produces.
Overall, it appears that the performance gains here are real and that they follow directly from the architectural changes the authors made: the feedthrough logic and output prediction logic stages are purpose-built circuits whose internal structure maps to the specific detection problem each one is solving. The improvements in power, phase noise, lock time, and spectral purity all appear to be consequences of that alignment.
